BackHome > Products > Electronic voltage regulator

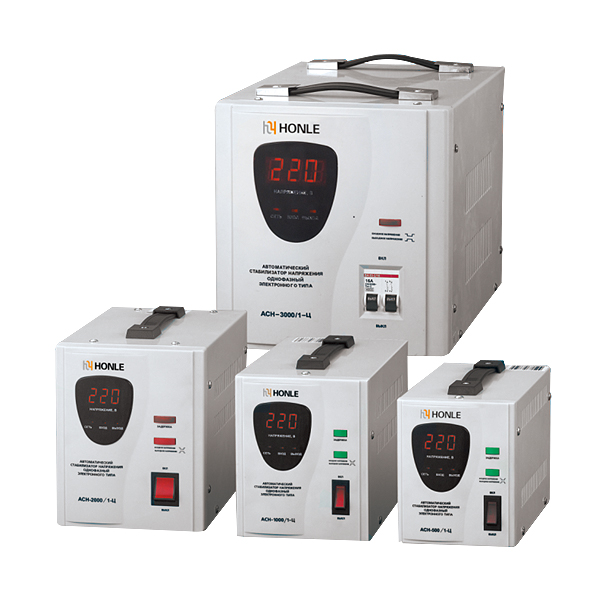

Electronic voltage regulatorACH Relay type voltage regulator

Online inquiry

Product overview
Apply
Specifications
Technical

This series automatic voltage regulator is a kind of relay control stabilizer,it owns the wide input voltage range,compact size,light in weight,delay output,little wave distortion and reliable,strict design and accurate assemble.this kind of stabilizer can add voltage regulating function also.In one word,this type stabilizer is very popular in overseas for the competitive and stable performance.

◎ Input voltage:150-270V ◎ Output voltage:220V±8% 110V±10% ◎ Delay output time:3-7min/3-7sec ◎ Frequency:50HZ/60HZ
Model	Requirements	Model 1	Model 2	Model 3	Model 4	Model 5	Model 6
Power(VA)		DER- 500VA	DER- 1000VA	DER- 1500VA	DER- 2000VA	DER- 3000VA	DER- 5000VA
Input	Phase	Single phase
	Voltage	AC150V-270V
	Frequency	50HZ/60HZ
Output	Voltage	220V±8% 110V±10%
	Efficiency	98%
	Frequency	50HZ/60HZ
	Under-volt	AC 246V±4V
Protection	Under-volt	Optional
	Over-volt	Optional
	Over heat	Optional
	By pass	No
	Delay	3-7min/3-7sec（Optional）
	Over load/short circuit	yes
Environment	Operating temperature	-10～40℃
	Storage temperature	-15～45℃
	humidity	２０% to 90%
Packaging	Pcs per carton	8	4	4	4	1	1
	Machine size(cm)	23.5×11.2×16.5	24.5×15×18	24.5×15×18	24.5×15×18	35×22×25.5	35×22×25.5
	Package dimensions(cm)	49×27.5×36	30.5×32×39.5	30.5×32×39.5	30.5×32×39.5	39.5×25×29	39.5×25×29
